Most requested
Standard perimeter

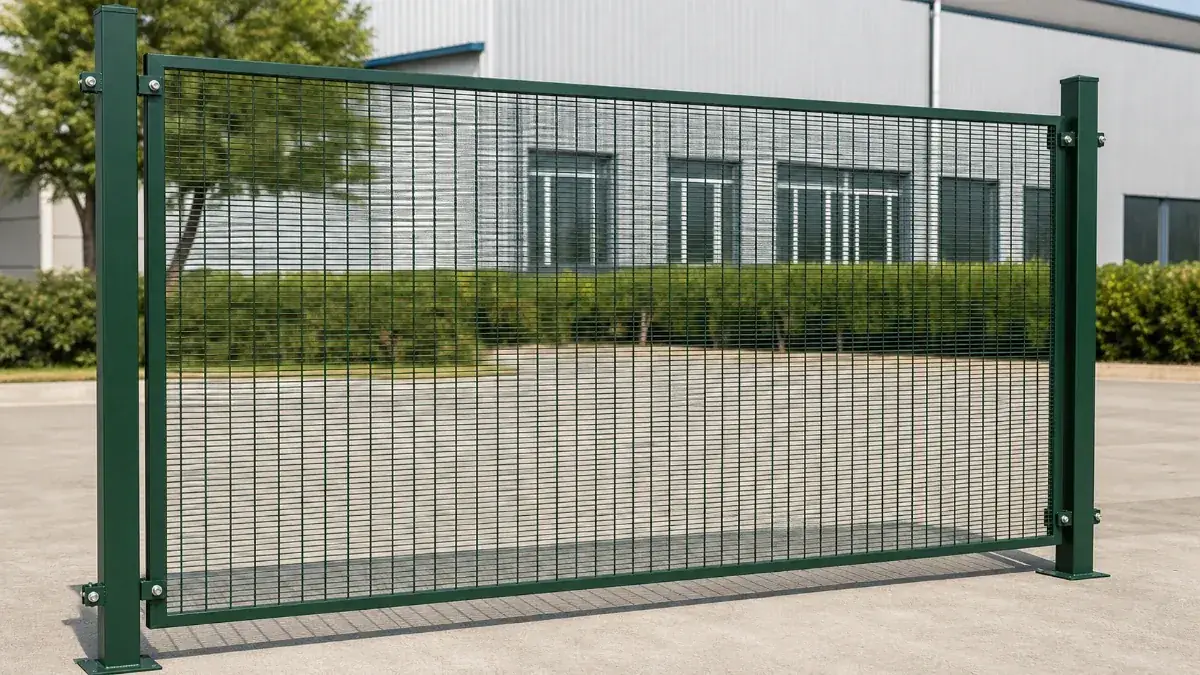

Standard 358 Panel System
For data centers, utilities, logistics yards and other controlled perimeter projects.
- 1.8–3.0 m panel heights
- Square or rectangular posts
- Clamp bar or bracket fixing
358 system details
High-security welded mesh system

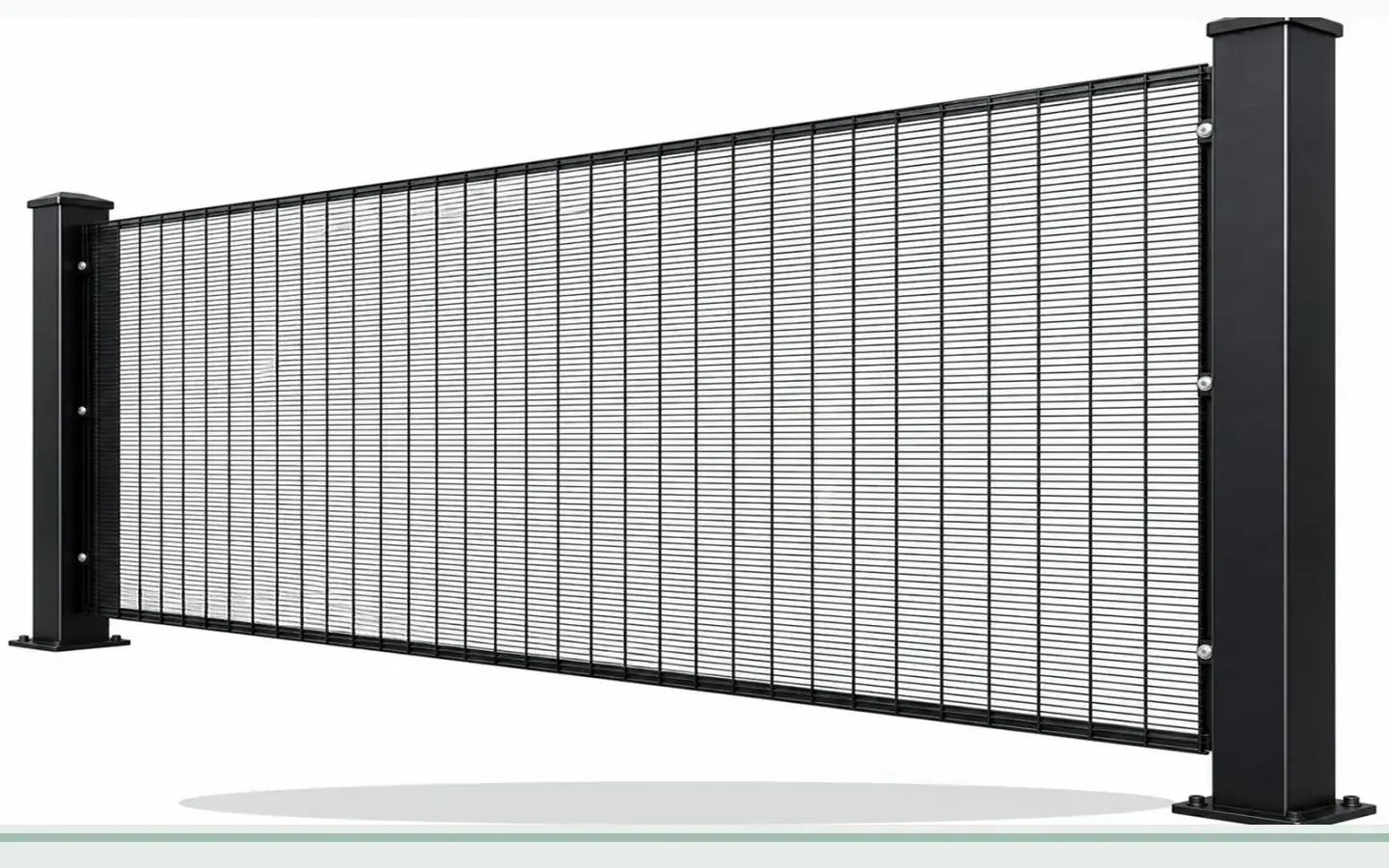

358 Anti Climb Security Fence Panels, Posts and Gates
TOPSFENCE supplies a 358 anti climbing fence system built from dense 76.2 × 12.7 mm welded mesh to restrict handholds and tool access while preserving clear visibility across high-security perimeters.
- Complete factory-direct system: work with a 358 anti climb fence manufacturer for panels, posts, clamp bars, anti-tamper fixings and matching gates.
- Project-specific: custom heights, post systems, coatings and security toppings.
- Drawing-led supply: panel centres, corners, gates and hardware checked together.
- Export ready: labelled bundles, separated hardware and loading documentation.
System type
358 Anti Climb Fence System
Supply scope
Panels, Posts, Fittings and Gates
Include the total fence length and destination port for a more useful first quotation.

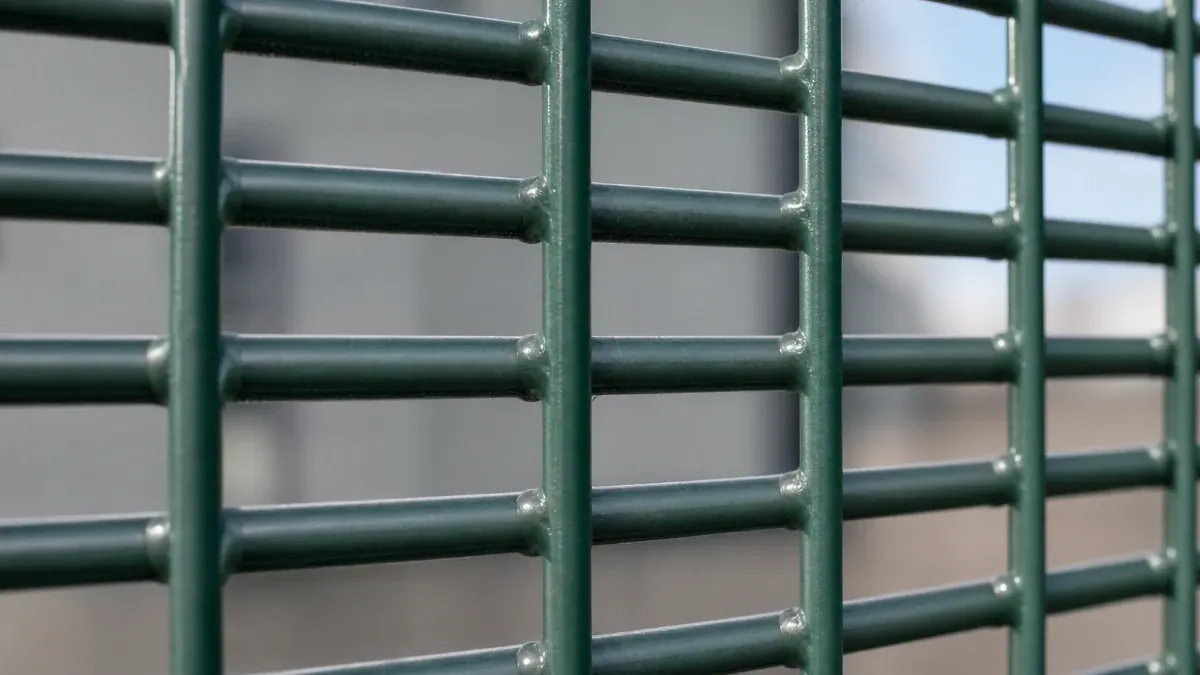

Mesh opening76.2 × 12.7 mm
Wire diameter4.0 / 4.5 mm
Panel height1.8–3.0 m+
Panel width2.0 / 2.2 / 2.5 m
FinishGalvanized + coated
Custom supplyAvailable
Choose the security level
358 Fence Configurations for Different Projects
Each 358 anti climb mesh fencing order is configured around height, fixing method, topping and access requirements instead of treating every project as the same panel.
Most requested
Enhanced perimeter

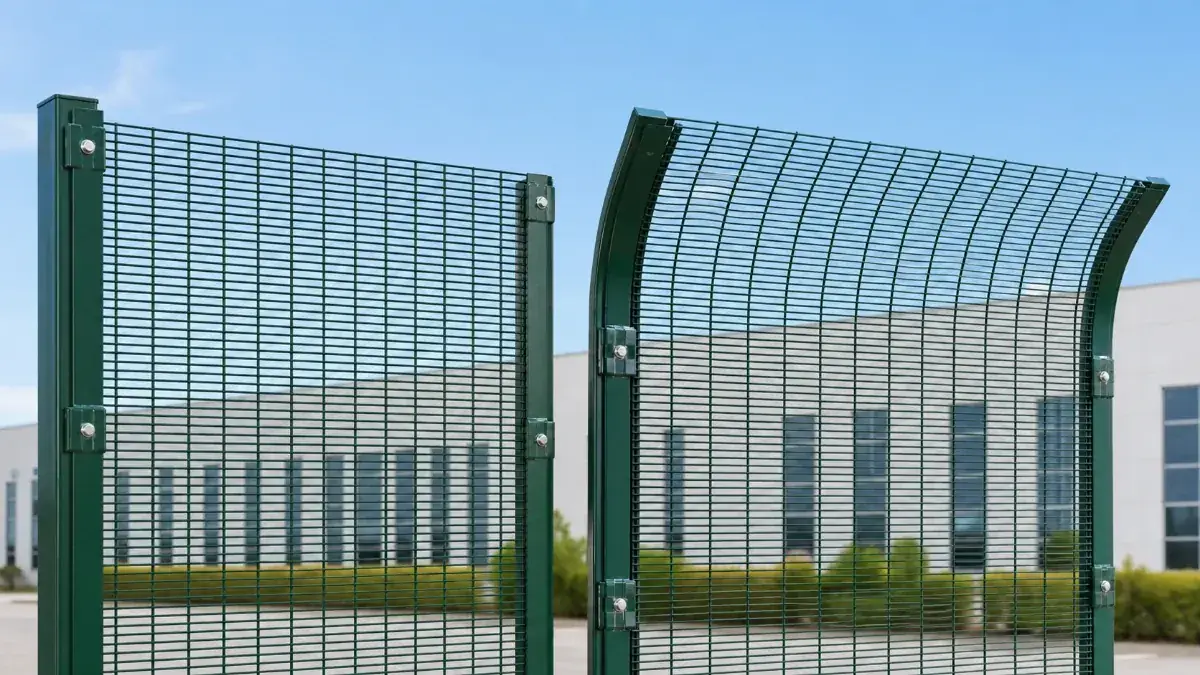

Extended or Cranked Top System
For sites requiring added height or support for barbed or razor wire topping.
- Straight or crank extensions
- Project-specific topping supports
- Reinforced posts and fixing rows
Controlled access

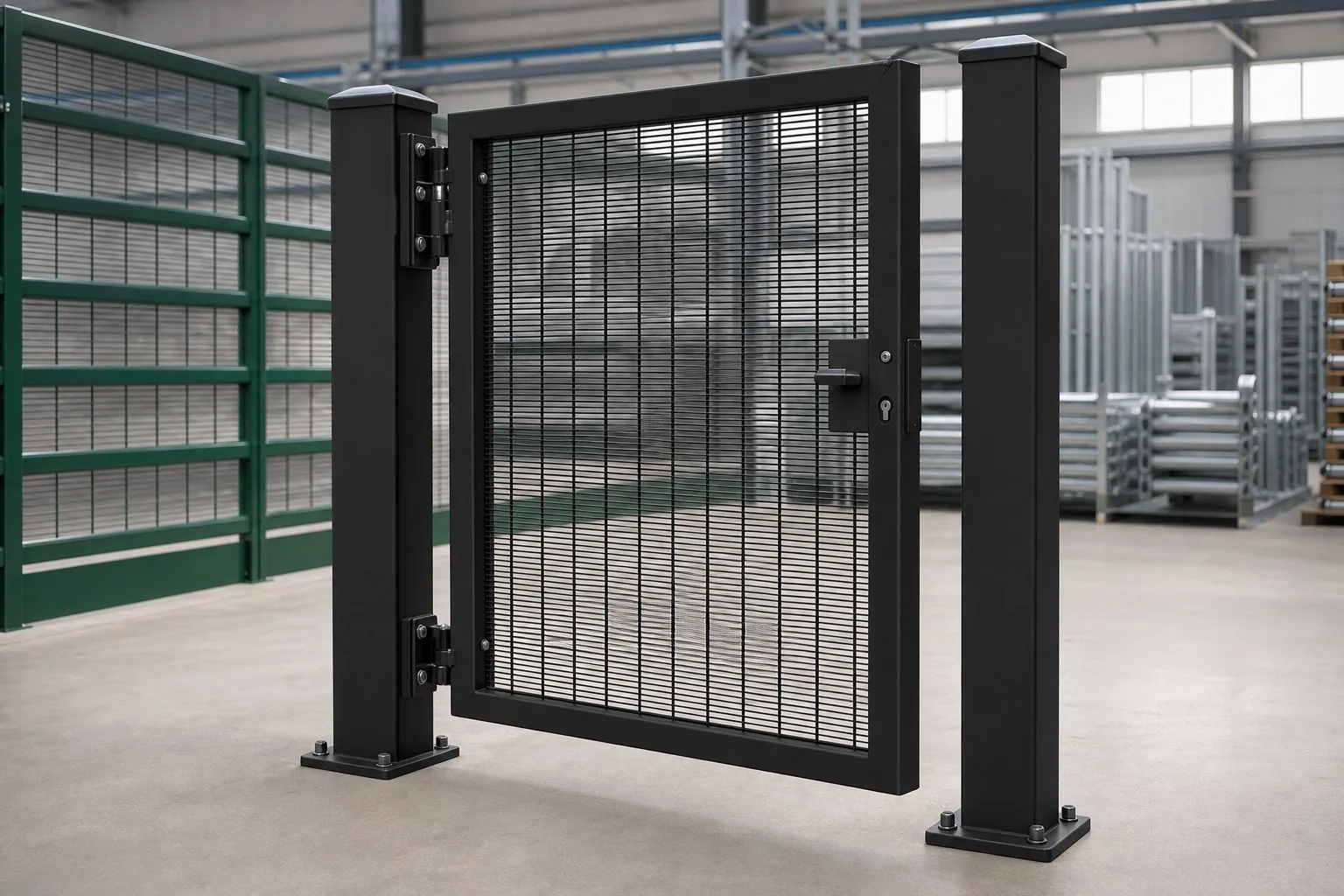

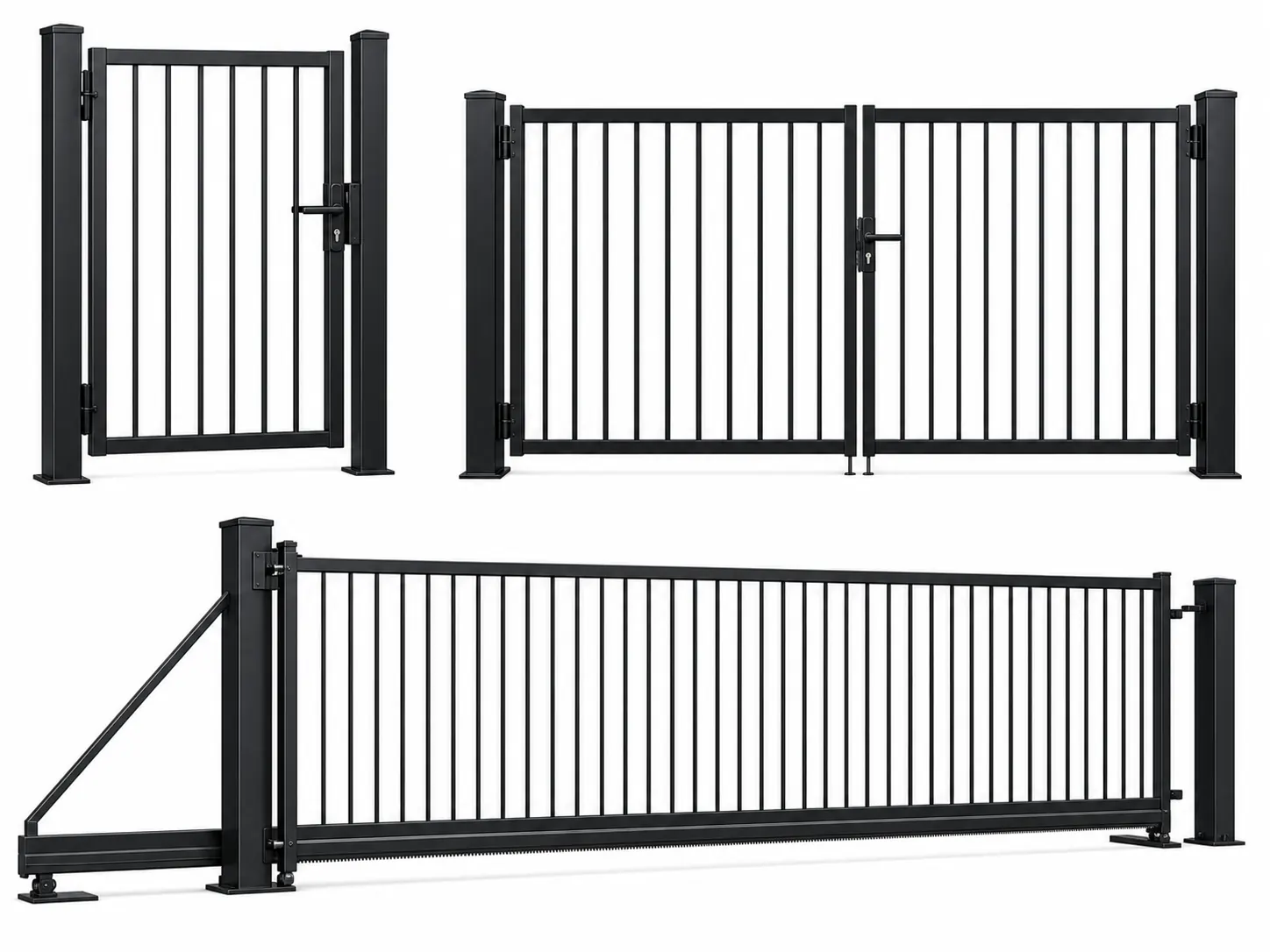

358 Pedestrian and Vehicle Gates
Matching mesh gates coordinated with the fence height, post system and access opening.
- Single- and double-leaf options
- Hinges, drop bolts and lock preparation
- Matching finish and infill mesh
Technical reference
358 Anti-Climb Fence Specifications
These are common starting points. Final panel, post and fixing details should follow the approved project drawing and site conditions.
| Specification | Common options | Quotation note |
|---|---|---|
| Mesh opening | 76.2 × 12.7 mm 3 × 0.5 in |
The defining aperture of standard 358 security mesh. |
| Wire diameter | 4.0 mm, 4.5 mm project-specific options |
Confirmed together with panel height and required rigidity. |
| Panel height | 1.8, 2.0, 2.4, 3.0 m stacked systems available |
Taller systems require coordinated post and fixing design. |
| Panel width | 2.0, 2.2, 2.5 m custom widths |
Panel width must match post centres and fence-line drawings. |
| Post system | Square, rectangular, I-post base plate or embedded |
Post section follows height, wind, ground and foundation conditions. |
| Fixing system | Clamp bar, clips, brackets anti-tamper bolts |
Fixing quantity and spacing are listed against each panel height. |
| Surface finish | Hot-dip galvanized galvanized + powder coating PVC coated |
Specify environment, colour and expected service condition. |
| Security topping | Straight or crank extension barbed / razor wire support |
Subject to local project rules and approved perimeter design. |
System quotation
A Secure Perimeter Is More Than a Mesh Panel
For each 358 anti climb fence project, the quotation can separate standard line sections, corners, gates, topping and spare hardware so the complete system is visible before production.
01 Dense mesh panel
02 Security post
03 Fixing system

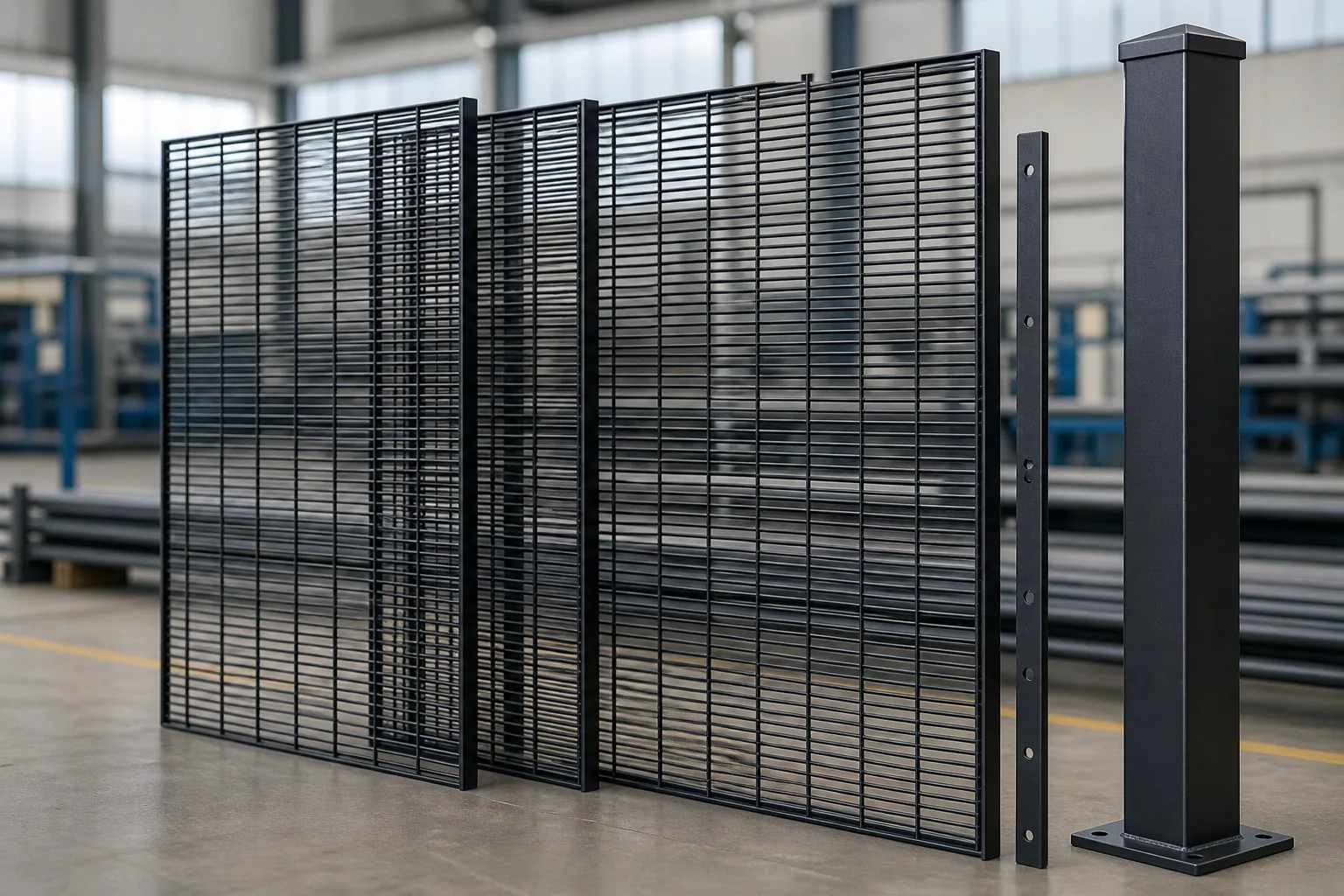

Fence panels
Standard, reinforced or stacked panels coordinated with the post centres.

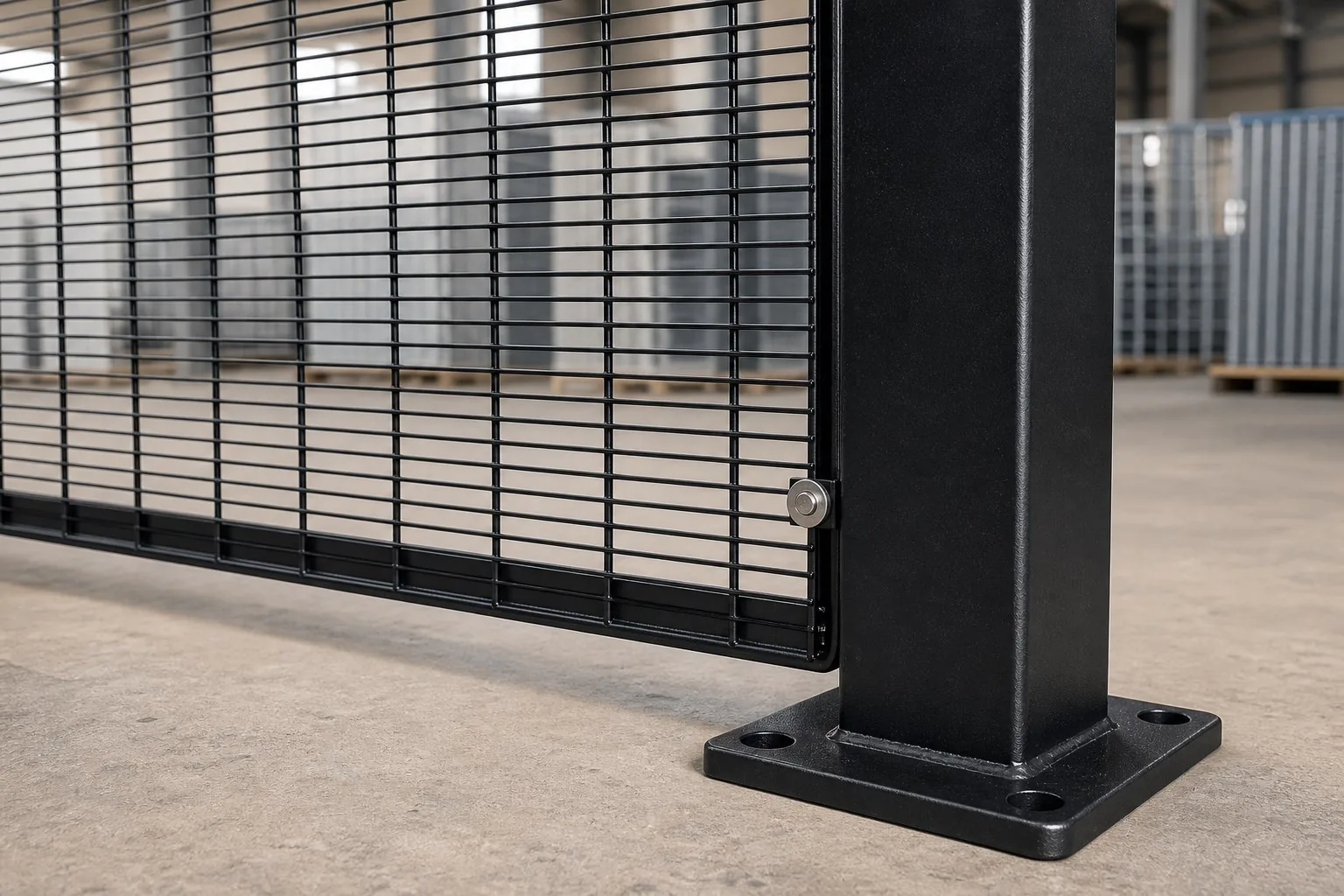

Line and corner posts
Embedded or base-plated posts with caps, corner details and end conditions.

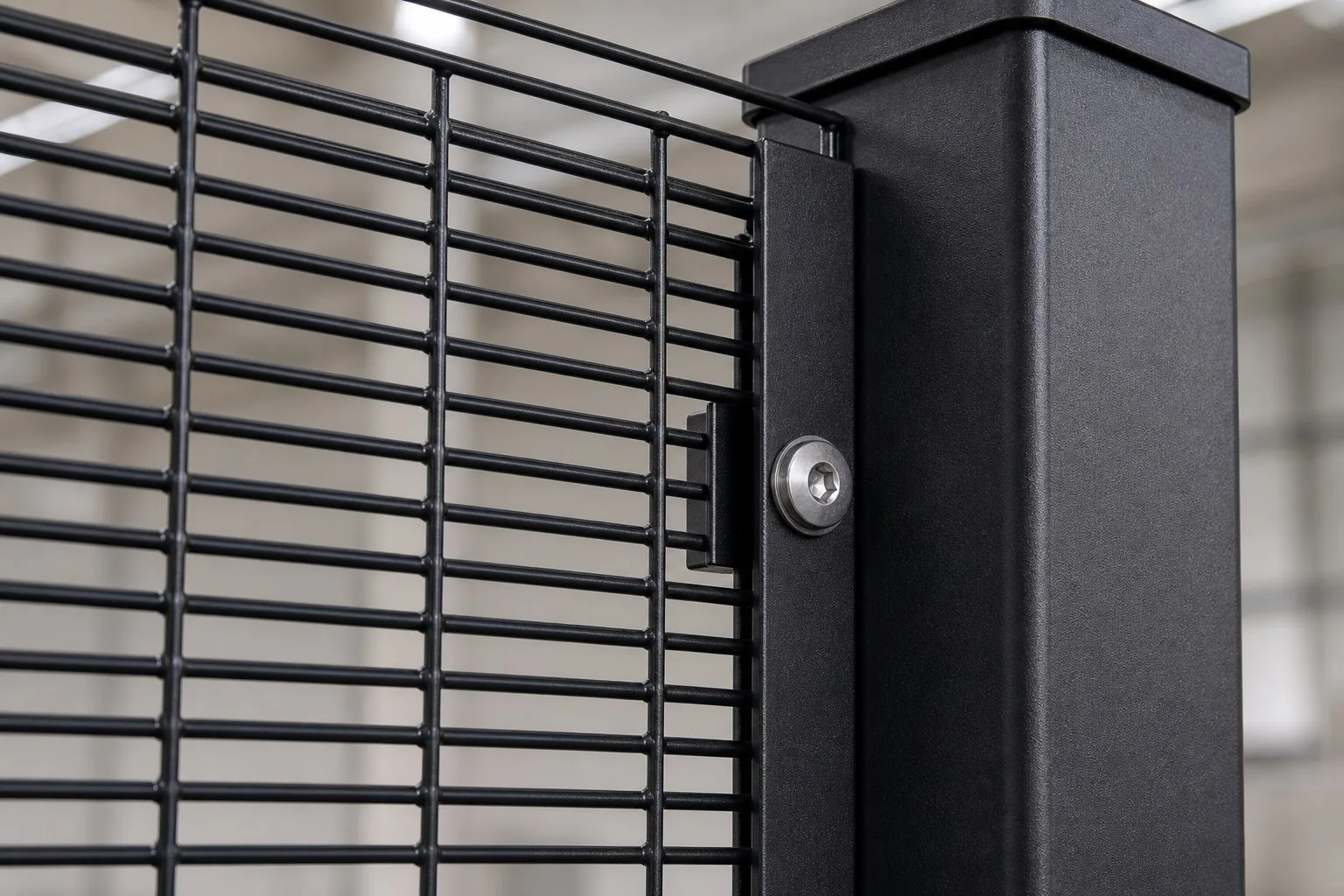

Clamp bars and clips
Continuous bars or bracket systems selected for the required security level.
Anti-tamper fixings
Bolts, nuts and washers packed and labelled against the fixing schedule.
Security topping
Straight or crank extensions prepared for approved topping arrangements.
Matching gates
Pedestrian and vehicle access coordinated with mesh, finish and fence height.
Surface protection
Choose the Finish Around the Project Environment
Colour alone is not the coating specification. Tell us the exposure, target service condition and project standard so the finish can be quoted correctly.
01

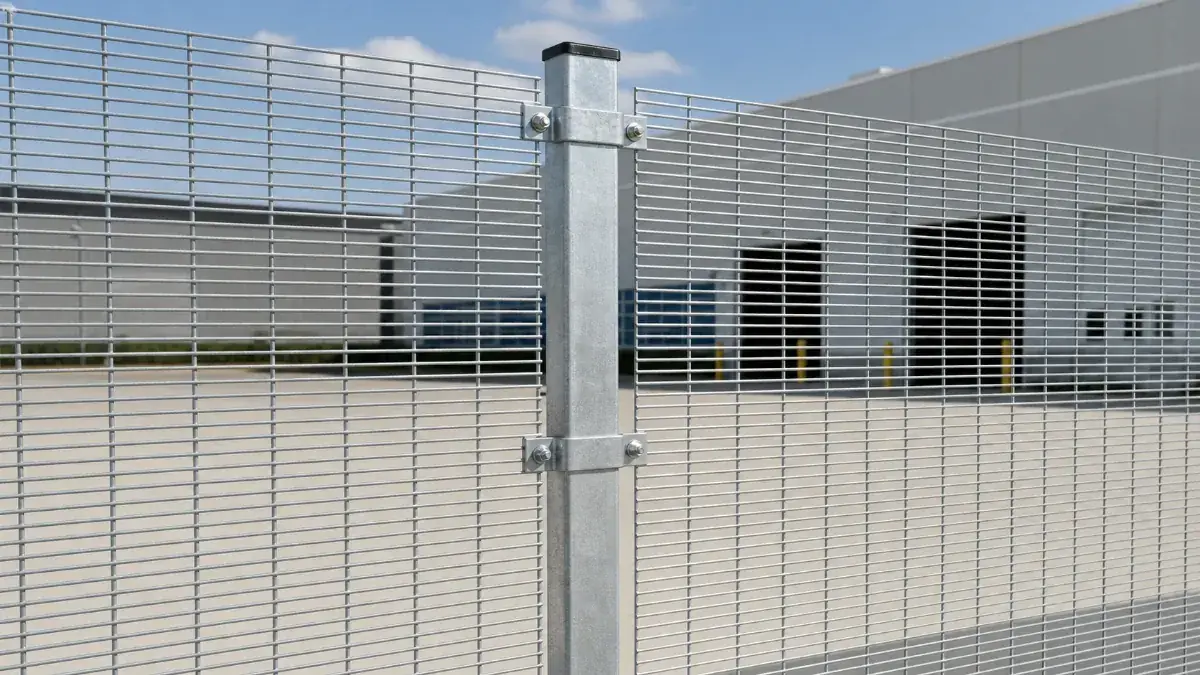

Galvanized
A practical corrosion-resistant finish for projects that do not require a coloured final surface.
02

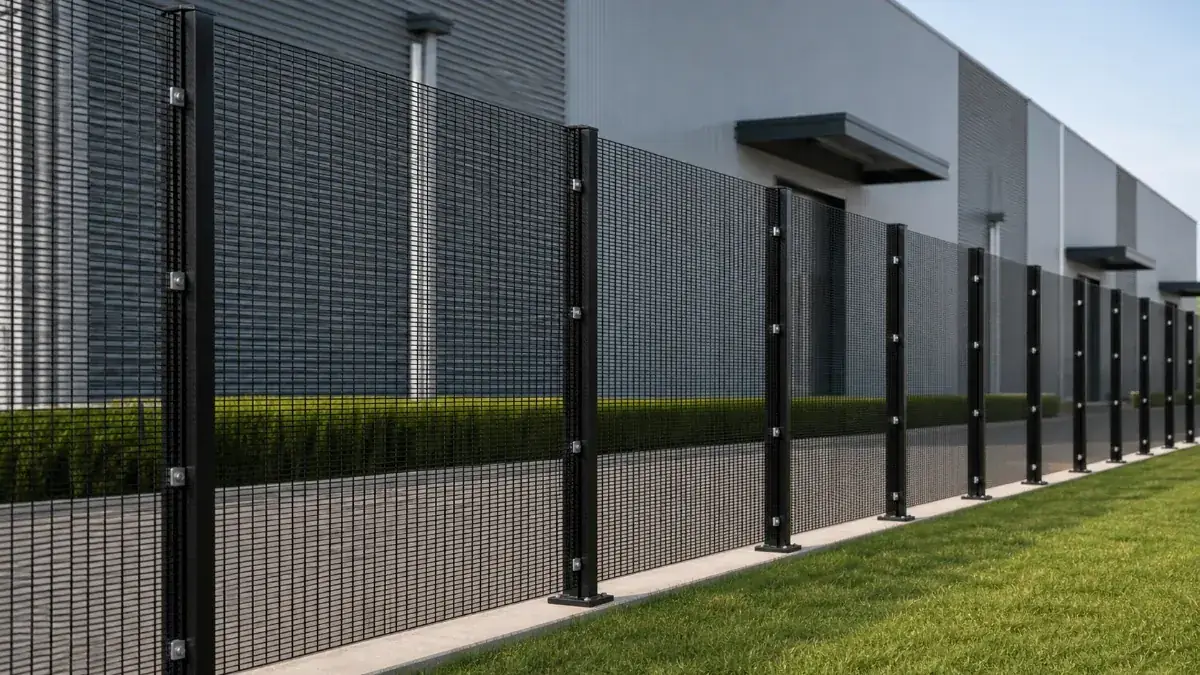

Galvanized + Powder Coated
A layered system for colour, appearance and added surface protection in outdoor environments.
03

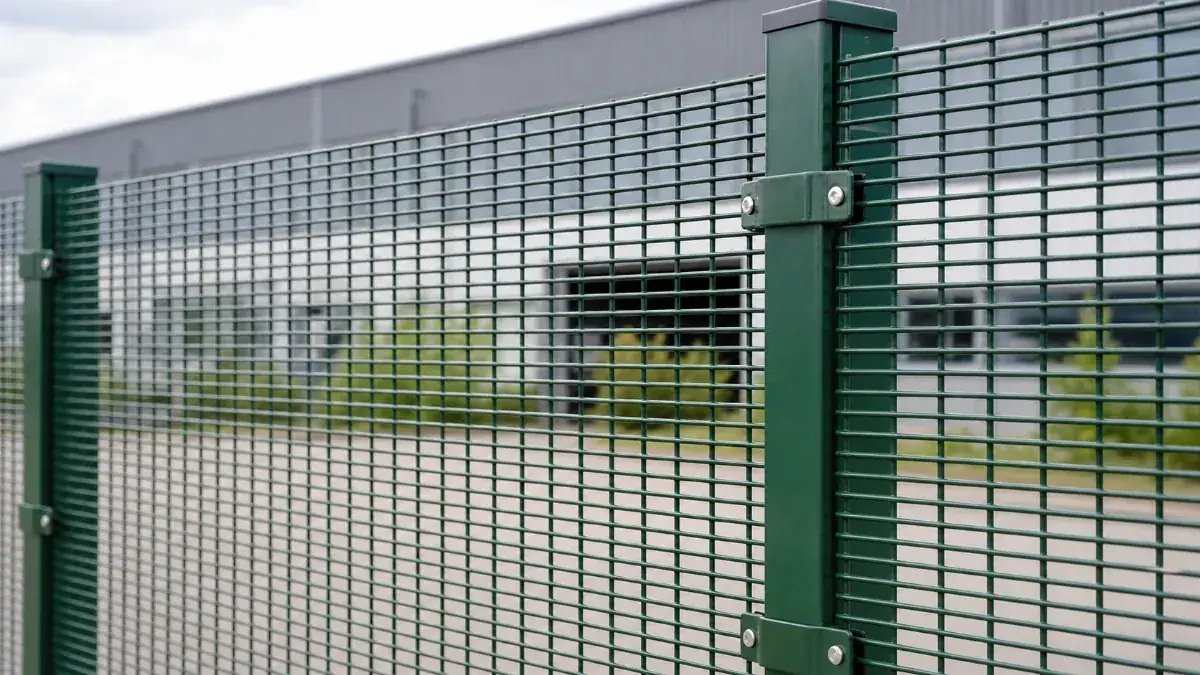

PVC Coated
Available where the project specification calls for a thicker polymer-coated surface.
Production and inspection
Check the system—not only the finished colour.
Production control

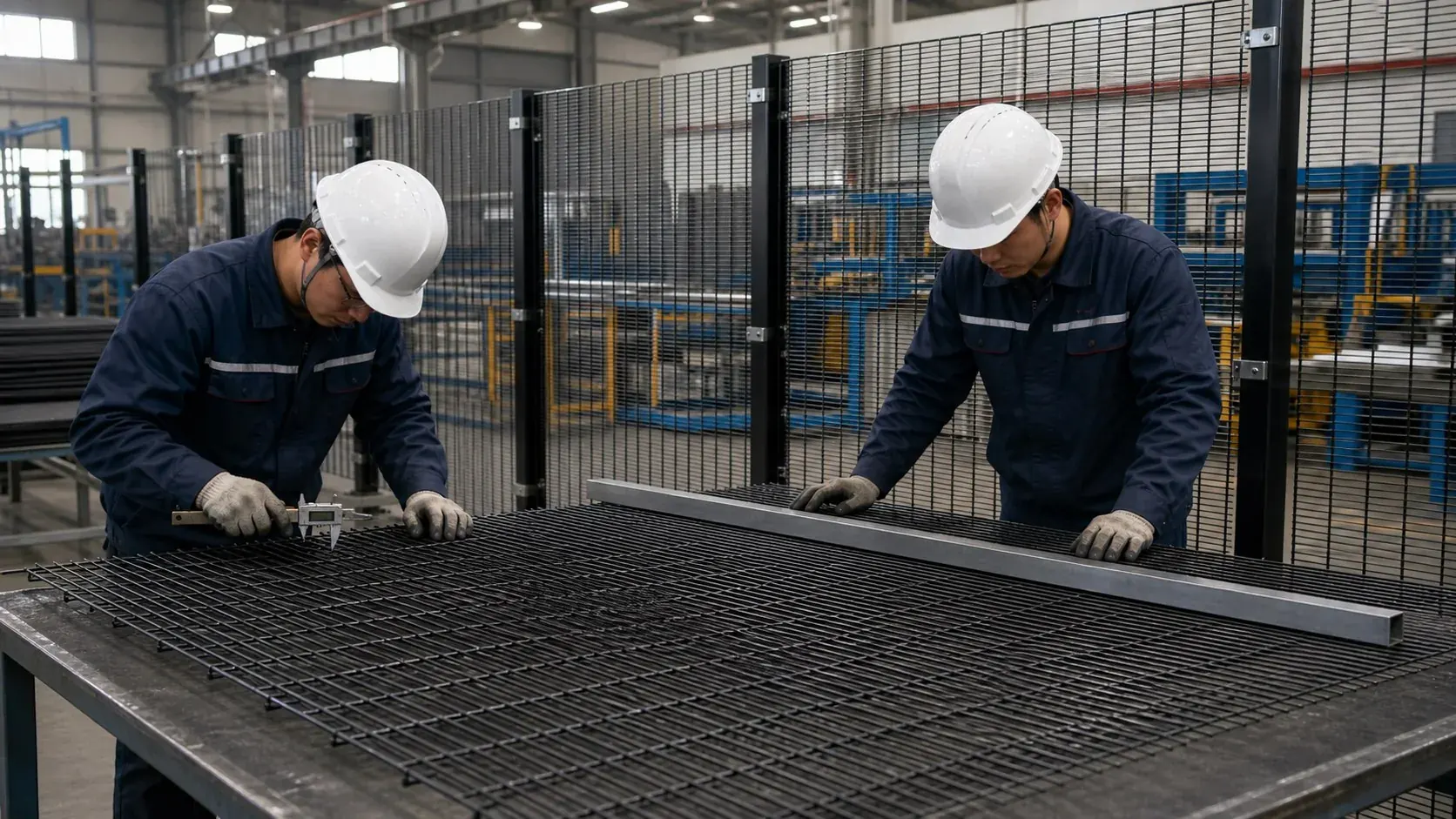

Six Checks Before the Fence Is Packed
Dense mesh makes uneven welding, distortion and coating gaps easier to notice. The inspection plan should follow the parts that affect installation and finished appearance.
- 01Wire and aperture check
Confirm wire diameter and mesh opening against the order specification.
- 02Weld continuity
Review weld intersections and remove sharp projections or damaged edges.
- 03Panel flatness
Check finished panels for bowing before coating and bundling.
- 04Post and fixing fit
Sample posts, clamp bars, brackets and bolts as one installation system.
- 05Coating coverage
Inspect intersections, edges and fixing zones after surface treatment.
- 06Quantity and packing
Match bundle labels and hardware packages to the packing list.
Typical applications
Clear Visibility for Controlled Perimeters
358 mesh is normally considered where the perimeter needs physical delay, clear sightlines and controlled access without using a solid wall.
Critical infrastructure

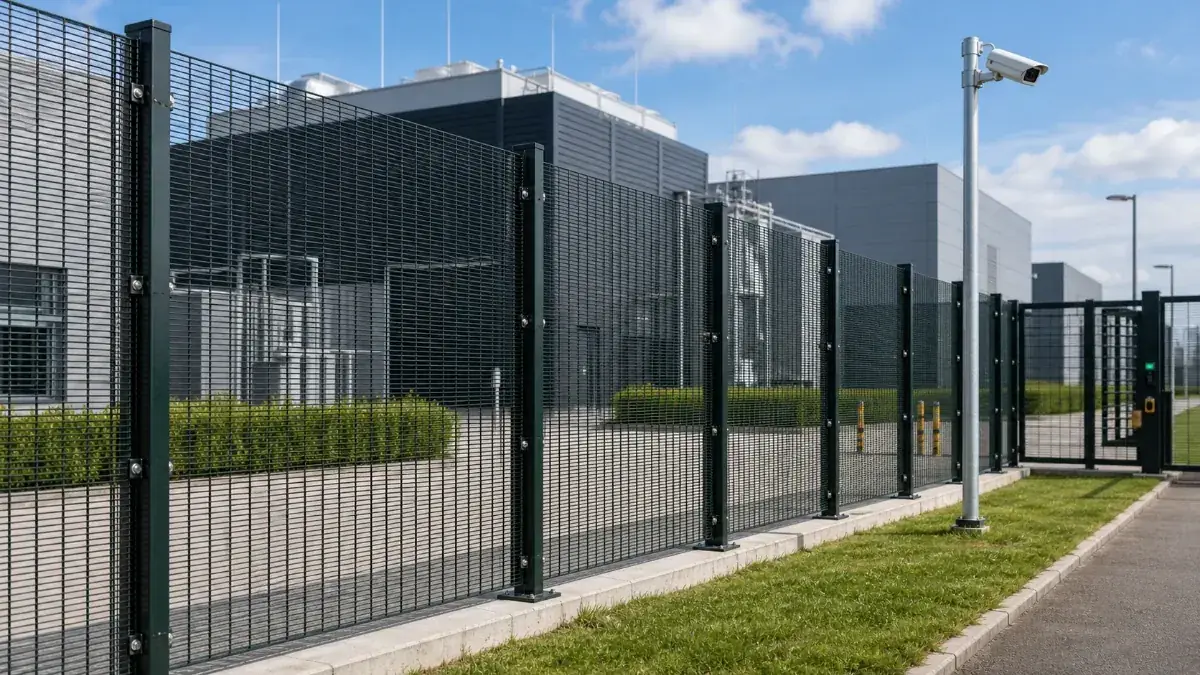

Data Centers and Utilities
Visible boundaries around substations, equipment compounds and controlled technical sites.
High security

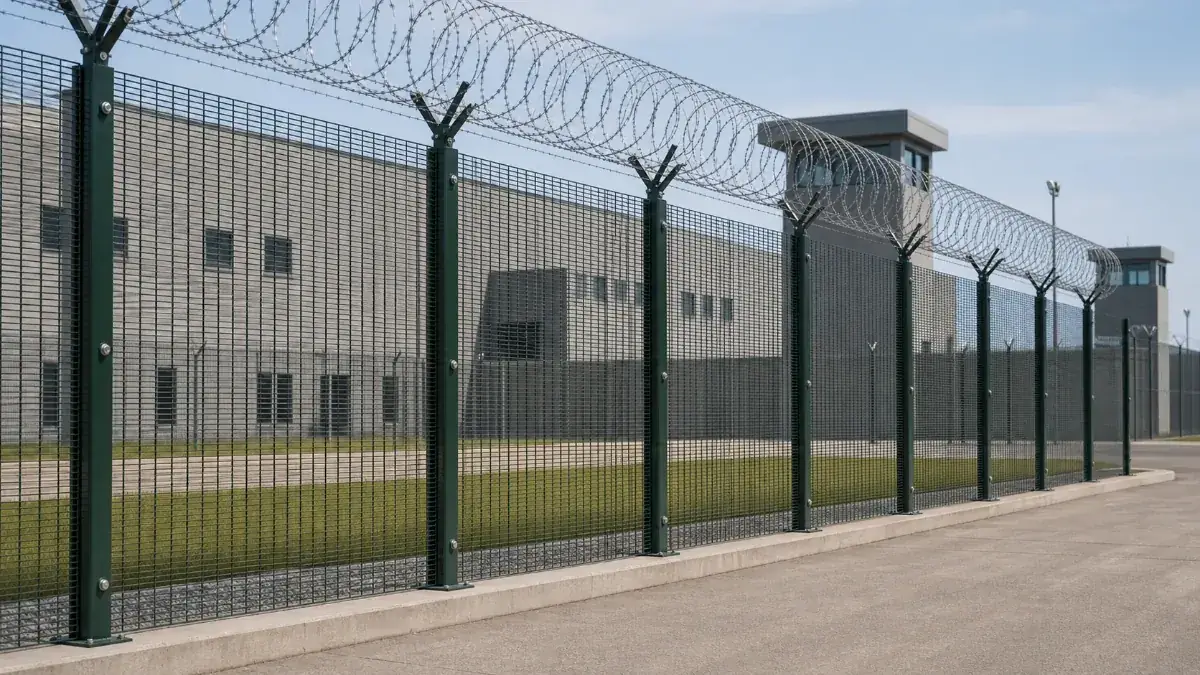

Correctional and Government Sites
A 358 anti climb prison fence provides dense mesh protection for high-risk and restricted perimeter zones.
Commercial security

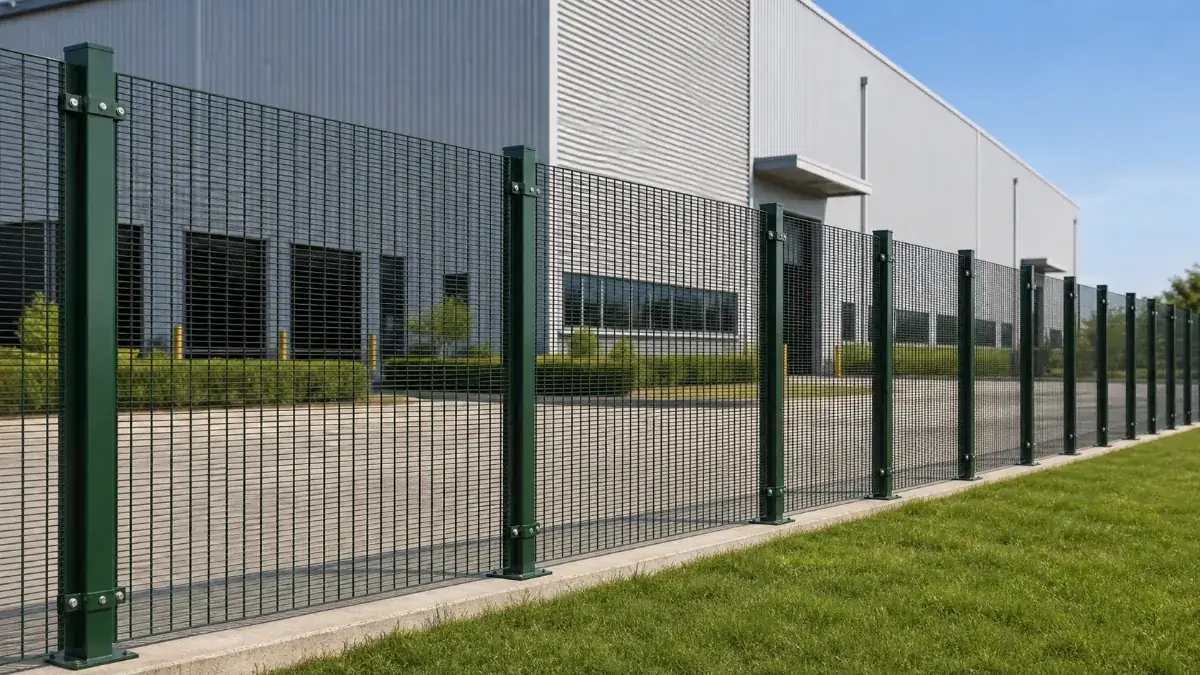

Warehouses and Logistics Yards
Perimeter control for storage, loading and restricted operational areas.
Public assets

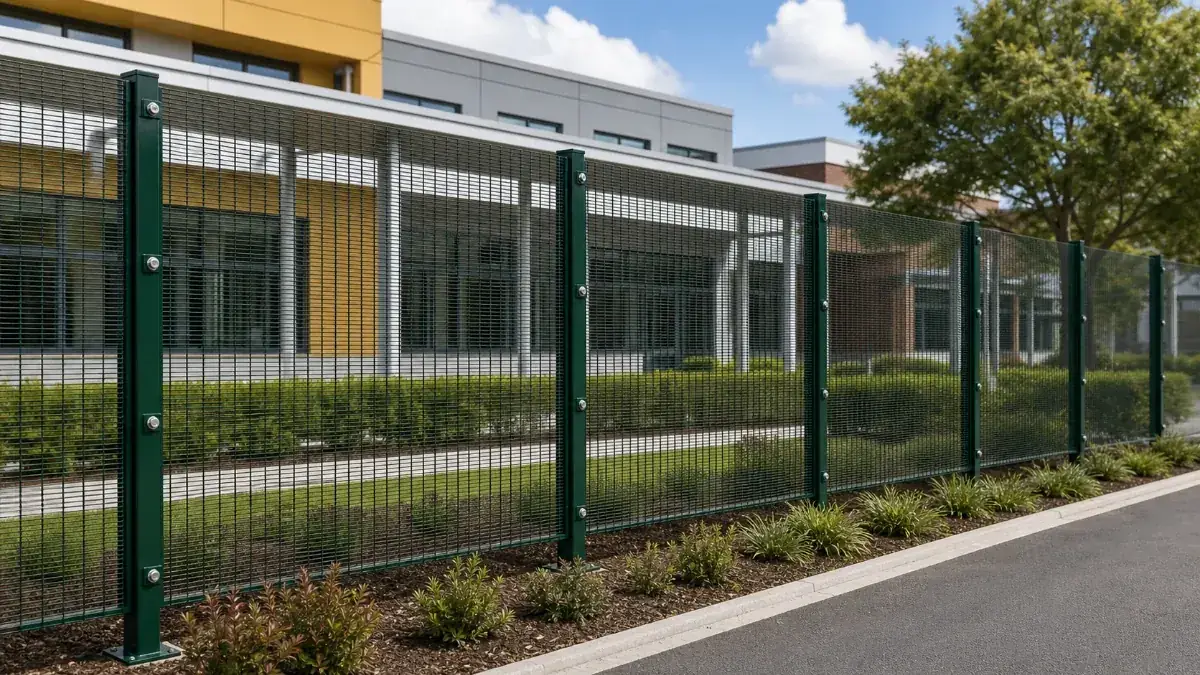

Transport and Public Facilities
Anti-vandal boundaries where surveillance visibility remains important.
Packing and loading
Organized for Site Receipt, Not Just Container Space

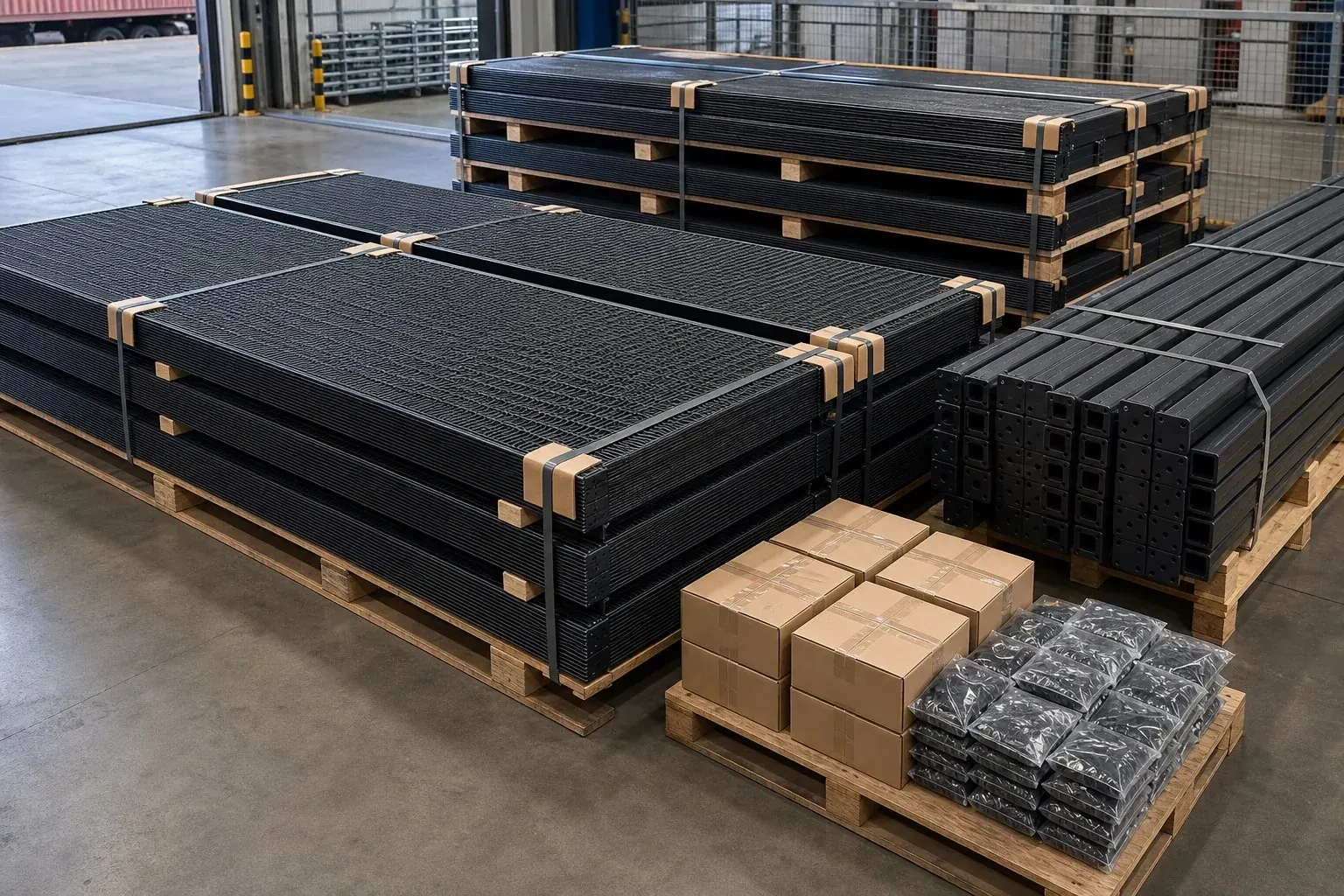

Panels, posts and small parts are packed differently. A clear packing schedule reduces missing hardware and makes unloading and installation easier to manage.
01
Panel bundles protected at contact points and strapped for handling.
02
Posts and clamp bars grouped by size or fence-line requirement.
03
Fixings and gate hardware boxed, labelled and counted separately.
04
Loading record with finished-goods and container-loading photos when required.
Quote input
Destination port + required packing method
Get a useful first quote
358 Anti Climb Security Fence Price and Quote Details
Even partial information is useful. A drawing, bill of quantities or reference photo can reduce clarification time.
01Fence height and panel width
Include stacked sections if the perimeter is above standard panel height.
02Wire diameter and coating
State the project standard or expected environmental exposure.
03Total length and layout
Provide straight runs, corners, slopes and changes in direction where known.
04Gate quantity and openings
List pedestrian, single-leaf and double-leaf access requirements.
05Security topping
Confirm straight, cranked, barbed-wire or razor-wire support requirements.
06Destination port
Used to prepare packing and loading assumptions for the quotation.
Before requesting a quote
358 Anti-Climb Fence Questions
Short answers to the details most often discussed during project screening.
Why is the product called 358 mesh?+
The name refers to the traditional imperial specification: a 3 inch by 0.5 inch mesh opening with commonly used 8 gauge wire. The metric opening is approximately 76.2 × 12.7 mm.
What is the best 358 anti climb fence configuration for a tall perimeter?+
Stacked systems are possible, but the best configuration depends on total height, post section, fixing rows, foundations and wind-load assumptions. The complete elevation should be reviewed before production.
What does your 358 anti climb fence service include?+
Yes. The quotation can cover panels, line and corner posts, clamp bars, anti-tamper bolts, security toppings, pedestrian gates and vehicle gates.
Which coating is suitable for coastal or exposed sites?+
Galvanizing plus powder coating is commonly considered, but the final coating specification should follow the project standard, exposure category and required service condition.
What affects 358 anti climb security fence price?+
Panel height, wire diameter, post section, coating, gates, security topping, quantity, packing and destination all affect the quote. Send drawings or a BOQ when available so missing details can be listed as quotation assumptions.
